HA series Electric Breaker Box/distribution boards are mainly used in the circuit of AC 50/60Hz, rated voltage 110V/220V/380V, and acted to install the modular combination equipment.
Appearance
A transparent protective cover. monitor equipment status at any time. a plurality of wiring holes is reserved. black sealant strip.
Structure
The structure is simple and firm, easy to install. Protective cover snap fastener design, with effectively lock. IP65 Standard.
Din Rail
Each box is equipped with guide rails for mounting miniature circuit breakers. Fixed installation of guide rail cannot be adjusted.
Material
Cover: PC; Body: ABS; Self-extinguishing fire material high-quality plastic raw materials.
Standard
This distribution box confirms standard BS EN60439-3. Din rail connection according to EN50022;
Model Items
This distribution box has 4way, 8way, 12way, 18way, up to 24way.
GalleryHot Sale
ha 8 ways mcb distribution box

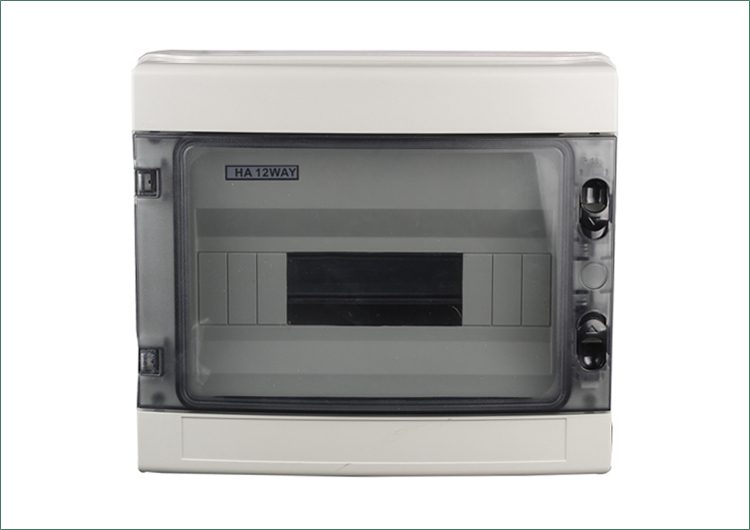

ha 12 ways mcb distribution box 2
ha 12 ways mcb distribution box 3
ha 24 ways mcb distribution box
ha 12 ways mcb distribution box
ha 12 ways mcb distribution box 5
ha 12 ways mcb distribution box 4
ha 8 ways mcb distribution box 2
ha 4 ways mcb distribution box 2
ha 4 ways mcb distribution box
ha 18 ways mcb distribution box
Plastics Body Dimension
| MCB Box Type | Length | Width | Height | MCB number |
| HK-4 ways | 140 | 210 | 100 | 2-4 |
| HK-8 ways | 210 | 215 | 100 | 4-8 |
| HK-12 ways | 295 | 260 | 140 | 8-12 |
| HK-18 ways | 410 | 285 | 140 | 14-18 |
| HK-24 ways | 295 | 420 | 140 | 20-24 |
